Building an Intelligent Harry Potter Search Engine

To prove that the header isn't clickbait - here's what we're going to build:

Vue.js Front End Web App with Flask Back End API
Vue.js Front End Web App with Flask Back End API

In this article, we walk through this use-case:

Context

As a part of my most recent project, I had an absolute blast learning about applying NLP - or Natural Language Processing - for insight extraction from unstructured data. Sprint-to-sprint, we threw every NLP processing technique under the sun at our data during this engagement, using Azure Databricks as the primary processing engine and leveraging it's ability to use industry grade open-source NLP libraries such as spaCy, TensorFlow, gensim, NLTK, ... (the list goes on and on) and my personal favorite - BERT.

I wanted to take the techniques I learned with BERT in this engagement and apply it on a small side-project in a domain I deeply cared about growing up - Harry Potter. By the end of this article, I'll leave you with:

  • An appreciation of BERT, and how it revolutionized Natural Language Processing that affects our lives every day (Google Searches)
  • How to use the CDQA suite - an amazing open-source framework running BERT under the hood
  • A Databricks transformation pipeline to use BERT on any text-based dataset (in this case Harry Potter books)
  • A demo of the model in action while answering Harry Potter trivia questions
  • Docker packages and Azure ARM-template based deployment code in Github for you to deploy the BERT web app in your own Azure environment

Use case - cutting edge Natural Language Processing on your data

The idea is, if it works on the Harry Potter books, it'll probably work on your (multilingual) data. Since all the components used are scalable, the pipeline demonstrated here can be easily extrapolated into a larger, enterprise-scale implementation, that does the following:

Azure Data Pipeline
Azure Data Pipeline

  1. Ingest your unstructured data into Cloud Storage/Data Lake using Azure Data Factory for Source-Destination transfer
  2. Transform your data and prep it into a format to be "NLP ready" using Azure Databricks
  3. Package the data, BERT model API and front-end engine (in this case it's a Vue.js app) in a self-enclosed Docker container, to be deployed into Azure Container Instances (DEV environment - like this demo) or Azure Kubernetes Service (PROD environment)
  4. Use the deployed Web App as a User-Interface tool to interact with BERT, or expose the trained BERT API to orchestrate automated insight extraction as part of some larger workflow (i.e. automating the part where you ask questions on the UI, as part of some larger scheduled pipeline)

The secret sauce - BERT

You might have noticed that around 2018, Google became really good at understanding your searches (everything from auto-fill, top results, recommendations etc). Google owes this success primarily to an NLP tool it developed and trained called "BERT - Bidirectional Encoder Representations from Transformers" (also the children's character from Sesame Street).

BERT the Model & Bert the Muppet
BERT the Model & Bert the Muppet

BERT simplified - Why Google Search is so good

While Google's web-crawling capabilities (used for populating the actual search results) has always been top notch, pre-2018 NLP tools couldn't do something critical - something that humans are really good at doing - bidirectional context inference.

Bidirectional context inference
Bidirectional context inference

Before BERT, previous NLP models would have interpreted the word right in the sentence above as "direction" in both cases, without understanding the fact that the word I'm and turn in both directions completely changes the meaning of the actual word. This is because, as the name suggests, NLP models before (like OpenAI GPT - BERT's predecessor) were largely unidirectional, meaning it could infer context only in one-direction (reading a sentence left-to-right once without having the ability to go back and refine it's understanding based on the subtle context building up).

To tackle this, Google built out BERT's Transformer-based Architecture, pre-trained BERT on 3.3 Billion words (Wikipedia + Books) over the years, before releasing it as an open source tool for the rest of the world to use. BERT can also be trained on Industry-Specific Data (like regulatory data etc) to pick up on specific context/nuances.

This article does a fantastic job explaining exactly how Google uses BERT today to understand your searches better than ever. Here's a final example to drive the point home:

BERT in action on Google Searches
BERT in action on Google Searches

Shout Out: CDQA

I heavily relied on CDQA for this POC. To oversimplify, the team at CDQA took BERT, created an API layer around it, built OCR capabilities to scan PDFs, and built a front-end that integrates with the API to create a Closed Domain Question Answering System, agnostic to the data source.

I basically took their code, transformed the Harry Potter books with Databricks, found a way to Dockerize it (through extensive Googling and learning Vue.js) and served it in Azure Containers.

I'd highly recommend checking out the CDQA site and GitHub to better understand the full capabilities of this amazing open-source tool:

CDQA
CDQA

Q/A Test: Verdict

When the questions are decently worded, the deployed model is actually fairly good at answering most of the questions I threw at it from several Harry Potter trivia sites.

Here's a few illustrated:

Question 1: Where is Azkaban fortress located?

Where is Azkaban fortress located?
Where is Azkaban fortress located?

Question 2: What is the name of Harry's pet owl?

What is the name of Harry's pet owl?
What is the name of Harry's pet owl?

Question 3: What is the name of Argus Filch's pet cat?

What is the name of Argus Filch's pet cat?
What is the name of Argus Filch's pet cat?

Question 4: What school did Viktor Krum go to?

What school did Viktor Krum go to?
What school did Viktor Krum go to?

Question 5: What is Hagrid's mother's name?

What is Hagrid's mother's name?
What is Hagrid's mother's name?

Despite having read the series over multiple times, I didn't remember that last one!

Let's throw the model a curveball.

Question 6: What is Ginny Weasley's actual first name?

The Answer is Ginevra - but BERT returns:

What is Ginny Weasley's actual first name?
What is Ginny Weasley's actual first name?

It seems that the model isn't able to pick up on the fine nuance that Ginny's true first name is mentioned in the book somewhere obscure without explicit reference (something like "Ginny is short for Ginevra", said Molly would have been a breeze for BERT to pick up), and returns a synonym for Ginny instead (i.e. technically it's true that she's indeed Ron's younger sister).

Kudos to Google for crushing it though (although one can argue that our BERT model doesn't have access to the FAQ site Google's BERT implementation found this answer on):

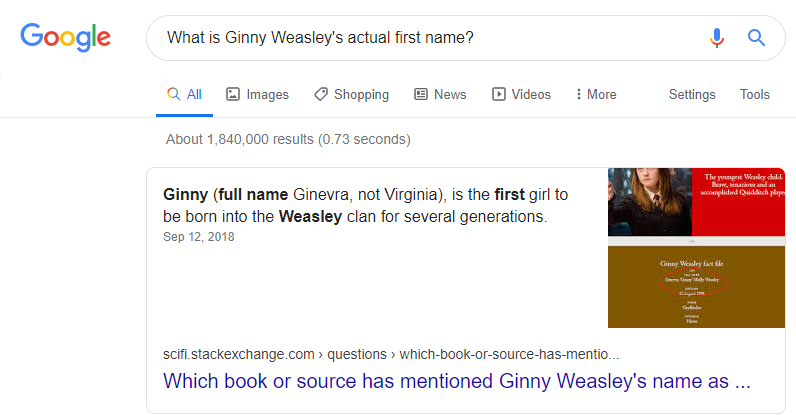

Googling Ginny's first name
Googling Ginny's first name

When we ask it the straightforward question "Who is Ginevra?", it's quick to return a hilarious answer from the time when Harry visits Luna's dad:

Who is Ginevra?
Who is Ginevra?

API calls for enterprise-style automation

As mentioned in the flow diagram above, we can make calls against the model API as well for automation capabilities; i.e. asking the model the same questions/new questions as new data flows in for daily insight extraction as part of a business need.

Notice how the front-end is actually making GET API calls every time we search:

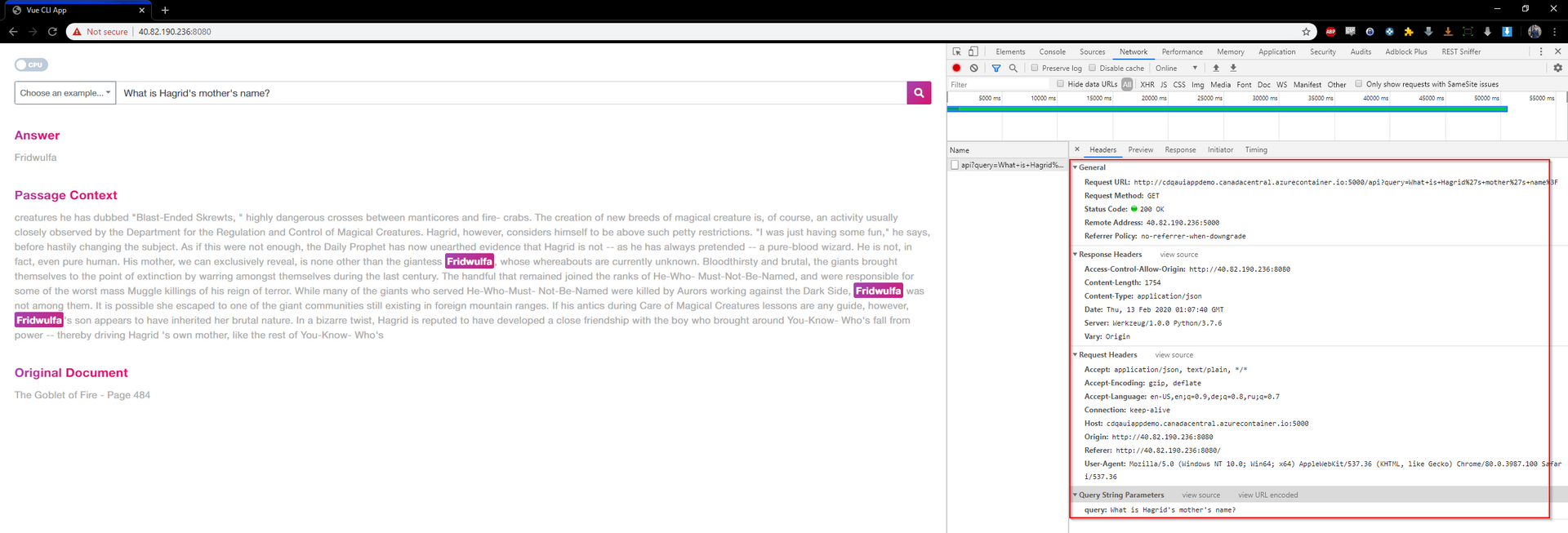

GET REST API call
GET REST API call

We can make the same call using Postman, or any other tool as well:

GET call from Postman
GET call from Postman

How to deploy

Because the app is containerized (i.e. all the dependencies etc are built into the container), deploying it is the easiest part! All the code used is available in my Github repository:

Git Repository for this demo
Git Repository for this demo

Step 1

Create an Azure Container Registry from the Azure Portal: steps here

This is where we'll push our containers to.

Step 2

Clone the Git Repo into the machine's local.

Step 3

Build the containers using the following docker commands (cd into the respective directories in 2.docker-deploy):

docker build -t dockerize-cdqa-ui-test .
docker build -t dockerize-cdqa-api-test .

Step 4

Run the following commands to push the containers to your Azure Container Registry (from Step 1), and deploy the Containers into a Container Group:

az login
az account set --subscription "Your--Subscription--Name"


docker tag dockerize-cdqa-ui-test yourazurecontainerregistry.azurecr.io/cdqa-ui
docker tag dockerize-cdqa-api-test yourazurecontainerregistry.azurecr.io/cdqa-api

az acr login --name YourAzureContainerRegistry


docker push yourazurecontainerregistry.azurecr.io/cdqa-ui
docker push yourazurecontainerregistry.azurecr.io/cdqa-api


az group deployment create --resource-group HP-POC-CDQA-Docker --template-file azuredeploy.json

Note that azuredeploy.json is the ARM template that contains the Container Group configuration (i.e. the brains behind the Azure deployment).

Once the deployment is completed, you'll be able to browse to the UI from the Public IP address populated in Azure:

ACI Webservice IP Address
ACI Webservice IP Address

And adding :8080 (the port exposed on the Container for accessing the UI):

Live Front-End
Live Front-End

In Conclusion

Hopefully through this fun example, I was able to demonstrate how easy it is to leverage the power of BERT, and Natural Language Processing as a whole in pulling out valuable context specific information from any text-based data - a feat that would have been impossible just a couple years back.

Having the ability to integrate this tool with an enterprise-scaled Data Pipeline running on Azure Databricks, and using the capabilities of Vue.js (and other similar frameworks) to create an elegant User-Interface makes BERT on Azure Containers an easily operationalized, scalable and effective tool that can pay big dividends if utilized correctly.
