If you use Fabric (or any other Data Analytics Platform) seriously, you'll realize the only way to get your whole org to become productive on the product is to have robust Git-based CICD. Otherwise, the workspace quickly becomes a garbage dump of stray notebooks (notebook-99) and junky tables (temp-table-100-test).

The north star is:

1. Each developer has their own Fabric workspace (and preferably, capacities) where they can hack and break things without fear
2. They open Pull Requests that are peer-reviewed
3. The PR is regression tested via automation in a "prod-mimic" environment (AKA staging)
4. After the PR merges, recent commits are batched up and deployed into production workspaces, where your C-Suite gathers insights out of your beautiful Power BI reports and Semantic Models.

The problem

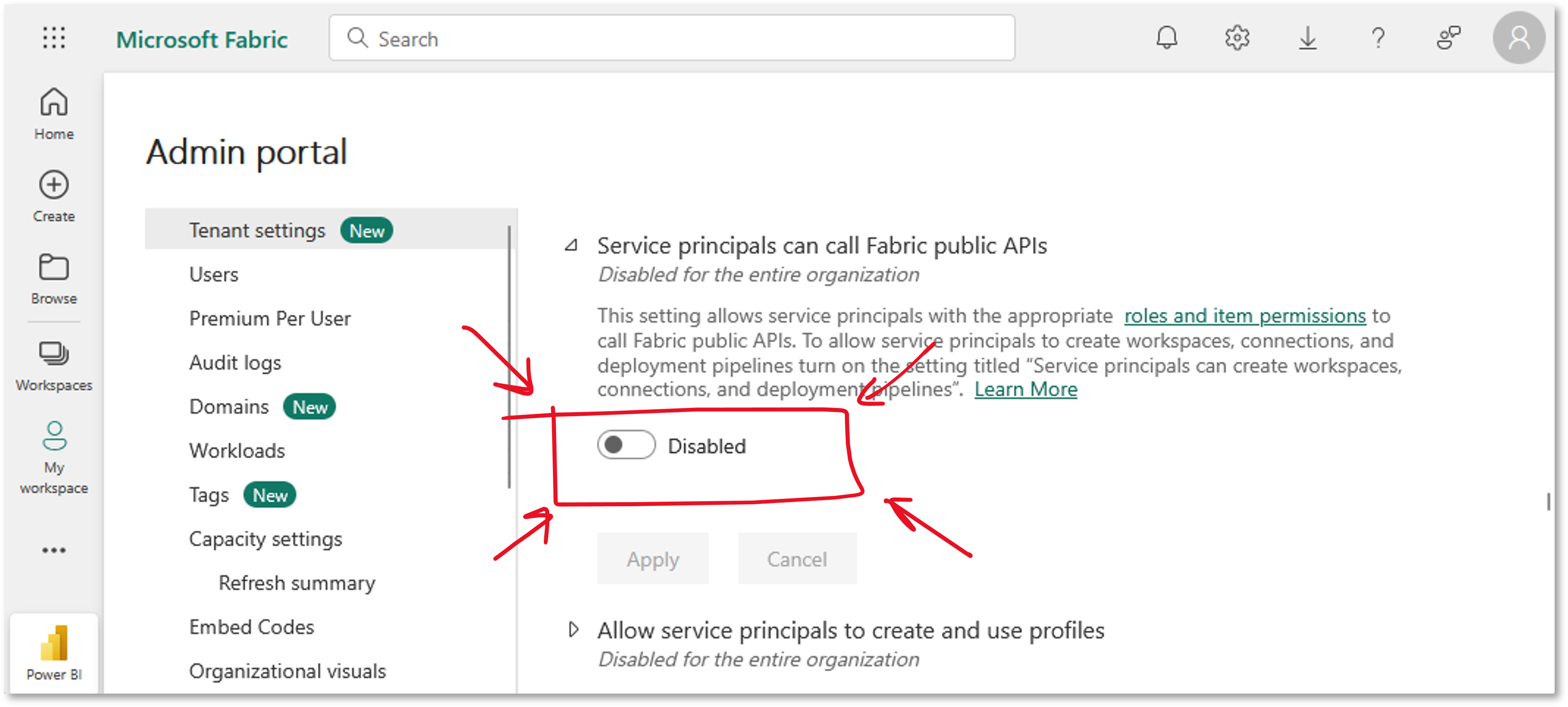

3 and 4 doesn't work if this button is Disabled on your company's Tenant:

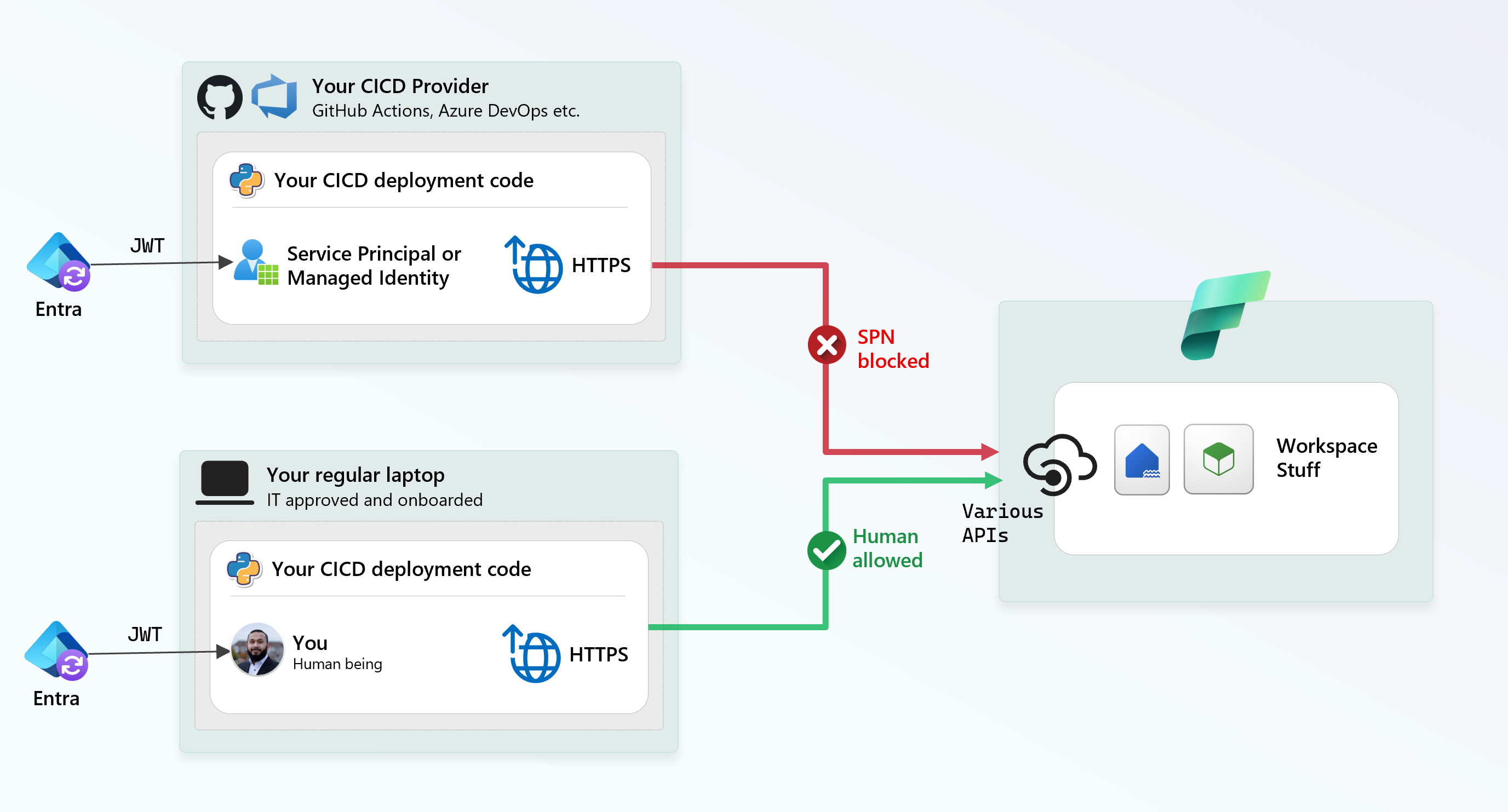

So in short, the problem can be summarized as this:

Whatever deployment code you're running, say - it's a mix of fabric-cli, fabric-cicd and other automation for Semantic Models (XMLA endpoint etc) - it all works locally as your identity, it just doesn't work in your CICD infrastructure.

The solution

Azure Relay

Or any other authenticated reverse-proxy solution, like ngrok or VSCode Dev Tunnel.

Azure Relay is in my opinion the best reverse-proxy, because it's already protected by Entra ID AuthN and ARM AuthZ - meaning, it' secured, and it's also built for High Availability support. In fact, many large-scale Azure Services that operate on Hybrid/multi-cloud infrastructure are built on Relay.

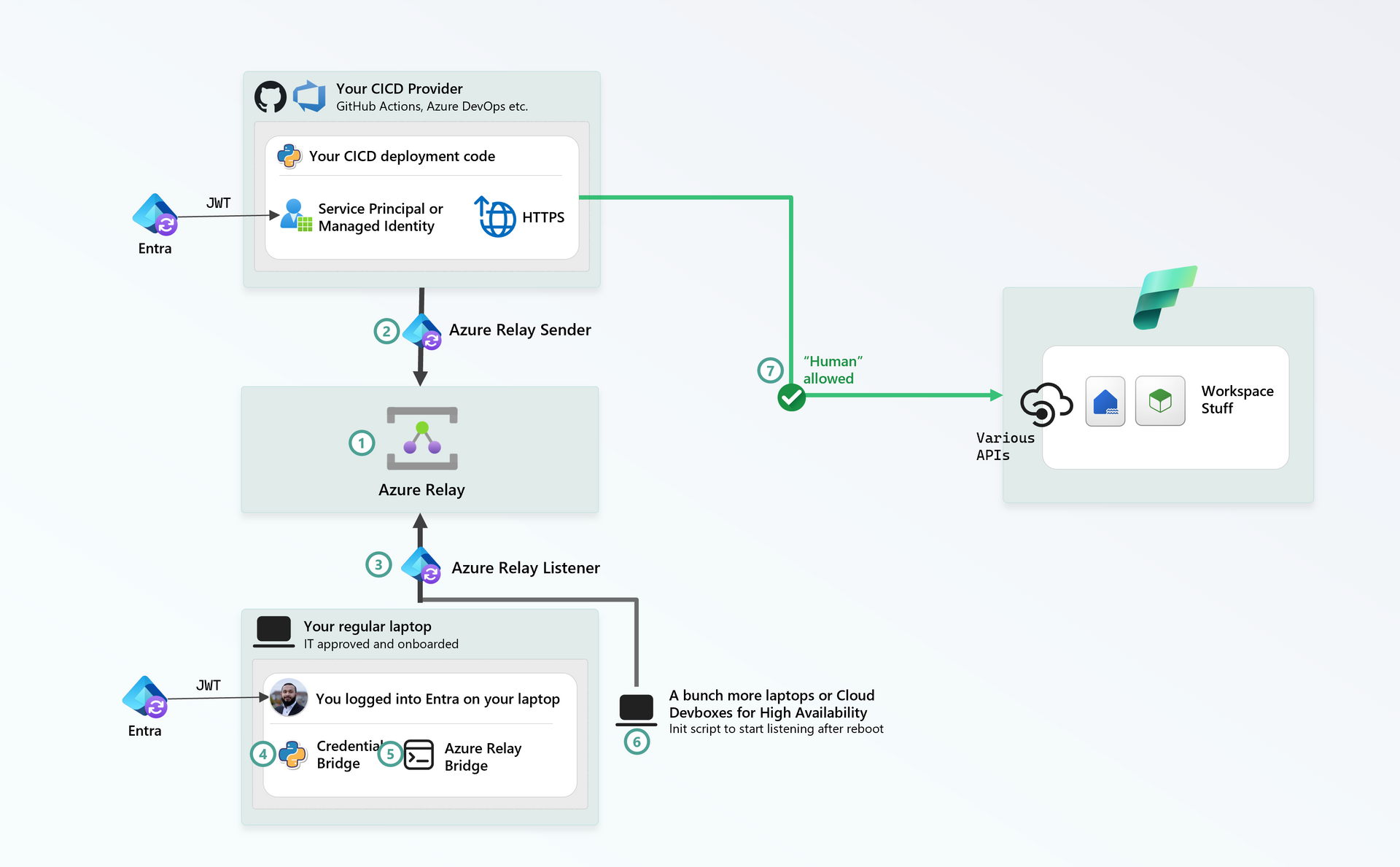

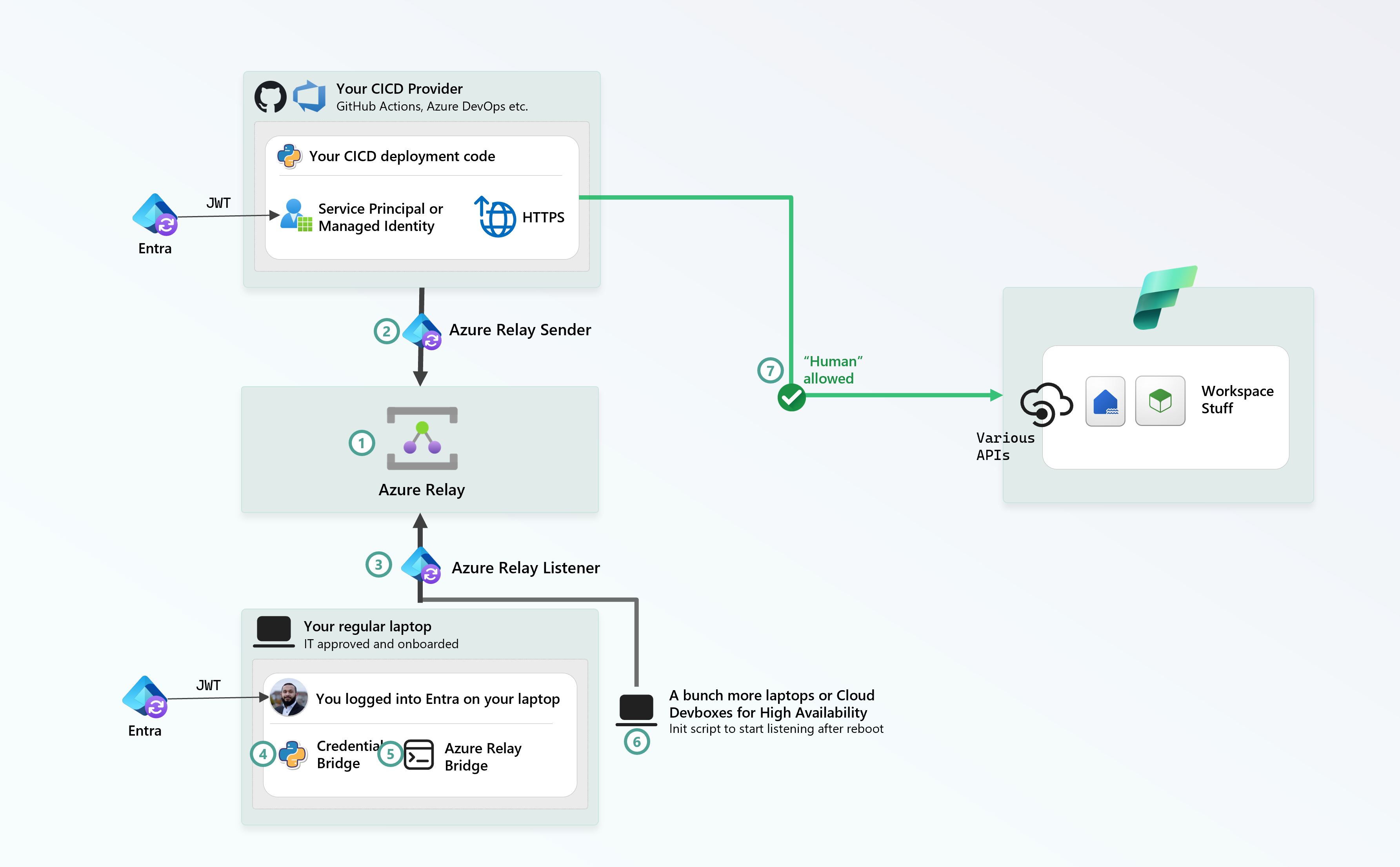

Architecture

1. Create an Azure Relay, takes 30 seconds.
2. Give your SPN/Managed Identity Azure Relay Sender, so it can send HTTPS requests to it.
3. Give yourself Azure Relay Listener, so your code can listen on it.
4. Setup a small app in your favorite language - say Python - to wrap TokenCredential via a REST API on a port, say 5000.
5. Launch Azure Relay Bridge - a small CLI tool to bridge port 5000 from your machine to the Relay
6. Optional - repeat Steps 4 and 5 on more machines for High Availability (in case your laptop reboots, another one is up)
7. Retrieve a token via the remote API via your SPN, use that to call Fabric, it'll work 😁

Tutorial

Step 1 - 3 is straightforward, use this tutorial to spin up a vanilla Relay (it's dirt cheap, since we're not going to be sending high volume of data through it.)

For Step 4, let's launch a dead simple Python app, inspired by this azure-cli-credentials-proxy

from http.server import *
from urllib.parse import *
from azure.identity import AzureCliCredential
import json, time

cred = AzureCliCredential()

class H(BaseHTTPRequestHandler):
    def do_GET(s):
        r = parse_qs(urlparse(s.path).query).get("resource", [""])[0]
        t = cred.get_token(r)
        s.send_response(200)
        s.send_header("Content-Type","application/json")
        s.end_headers()
        s.wfile.write(json.dumps({
            "access_token": t.token,
            "expiresOn": t.expires_on,
            "expires_on": str(int(time.time() + 3600)),
            "tokenType": "Bearer",
            "resource": r
        }).encode())

HTTPServer(("",5000),H).serve_forever()

Launch it, say, from powershell - the only dependency is azure.identity:

python -m venv venv
.\venv\Scripts\Activate.ps1
pip install azure-identity==1.23.0
python .\credbridge.py

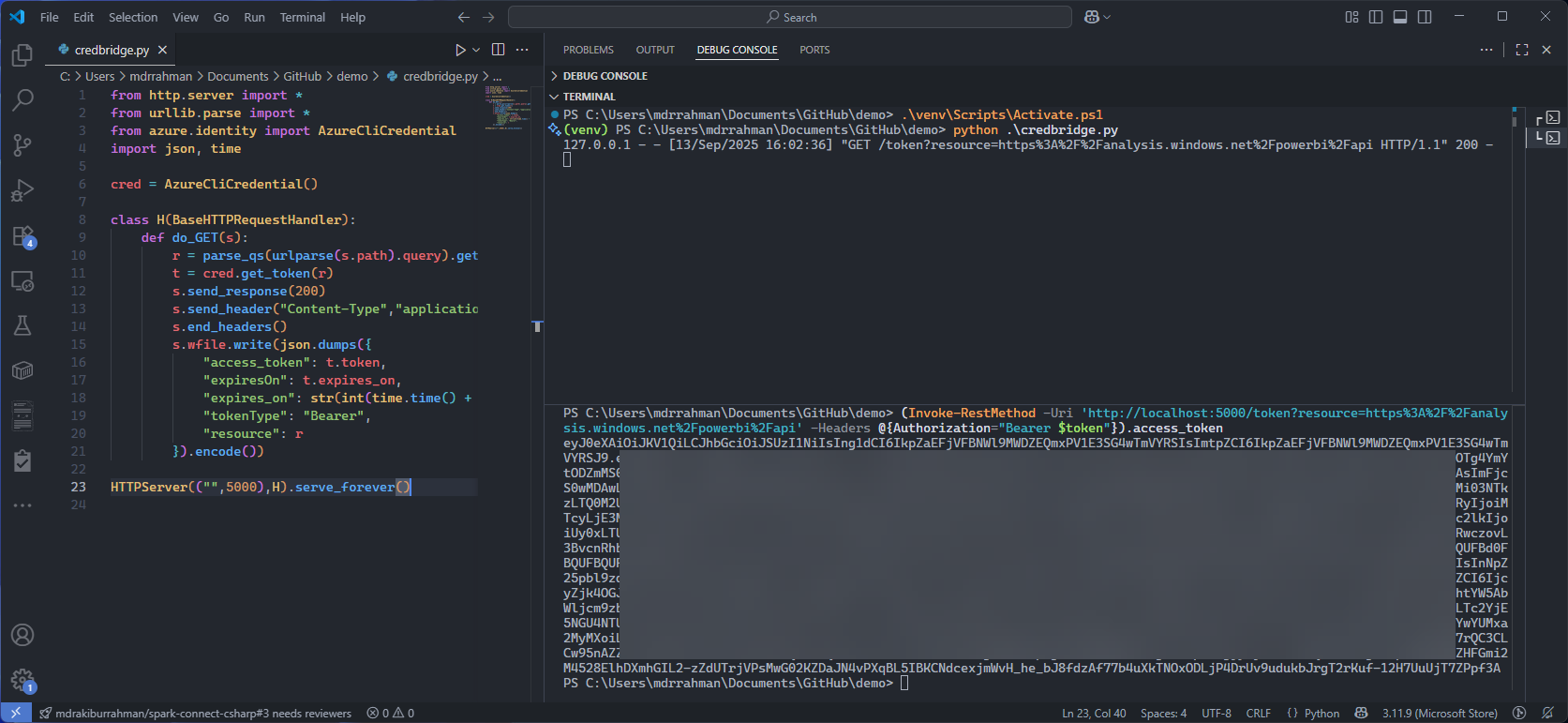

You can now invoke it locally to get a token from this simple server for the Fabric API:

(Invoke-RestMethod -Uri 'http://localhost:5000/token?resource=https%3A%2F%2Fanalysis.windows.net%2Fpowerbi%2Fapi' -Headers @{Authorization="Bearer $token"}).access_token

For Step 5 - Download Azure Relay Bridge release from GitHub:

function Get-Zip {
    param($Url, $Dest)
    if (!(Test-Path $Dest)) { New-Item -ItemType Directory -Path $Dest | Out-Null }
    $tmp = Join-Path $env:TEMP "$(New-Guid).zip"
    Invoke-WebRequest $Url -OutFile $tmp
    Expand-Archive $tmp -DestinationPath $Dest -Force
    Remove-Item $tmp -Force
}

Get-Zip "https://github.com/Azure/azure-relay-bridge/releases/download/v0.15.0/azbridge.0.15.0.win-x64.zip" "C:\...\azbridge"

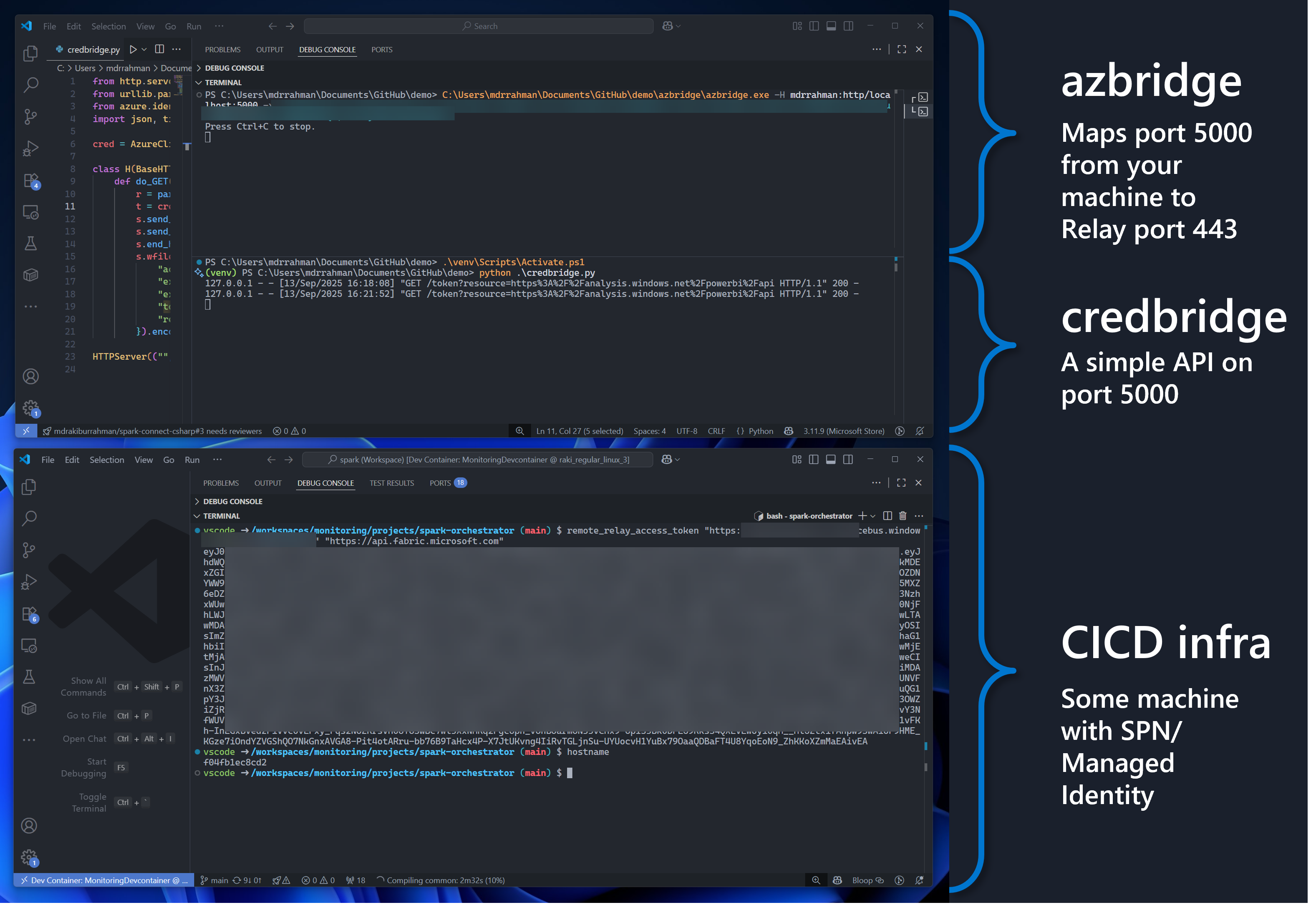

And launch it to start listening:

C:\...\azbridge\azbridge.exe -H mdrrahman:http/localhost:5000 -x "Endpoint=sb://your-relay.servicebus.windows.net/;EntityPath=your-hybrid-connection"

Now, you can make a remote call from some other machine as the SPN, and get a token.

Let's say your CICD runs on a linux machine:

remote_relay_access_token() {
    local encoded_resource=$(printf '%s' "$2" | jq -sRr @uri)
    local relay_token=$(az account get-access-token --resource 'https://relay.azure.net' --query accessToken -o tsv)
    curl -s -H "Authorization: Bearer $relay_token" "$1?resource=$encoded_resource" | jq -r '.access_token'
}

remote_relay_access_token "https://your-relay.servicebus.windows.net/your-hybrid-connection/token" "https://api.fabric.microsoft.com"

Conclusion

1. Using Azure Relay as an Entra-protected secured hop allows us to bridge SPN with another identity. This is identical to how Azure Key Vault works (you use one identity to retrieve a secret, that lets you become another identity) - the Vault being the credential bridge.

2. You can setup High Availability - if you have multiple physical machines, Azure Relay will round-robin requests. Basically, you're building a poor man's VMSS.

3. Azure Relay is dirt cheap for this use case, perhaps $5/month, because tokens are reused throughout a CI session - and volume of data transferred is very low.

4. Your IT Security person can't really complain, what you're doing is equivalent to using the Fabric UI to generate tokens on your behalf to click stuff, we're just taking the "UI" out of the picture here.

   What they can do is remove your Fabric Workspace Contributor access (in which case, you can't use the product via the UI anyway).

Automate responsibly!
