Apache Spark is out to get Apache Flink's lunch money:

(At least that's what the recent marketing buzz would have you believe).

With Spark Real-Time Mode building hype around the industry with O(100) millisecond latency, I wanted to see if streaming into Delta Lake got any faster with Real-Time mode compared to Spark 3.5 Structured Streaming's Microbatch.

It turns out RTM didn't make writing Delta Lake any faster (yet), because:

1. Spark 4.2 RTM has a hardcoded list of sinks it supports currently, Delta Lake isn't part of that list.
2. OSS Delta Lake implements still only implements addBatch, which doesn't work with RTM.

The O(100) millisecond number being thrown around is from records read from Kafka and written back to Kafka. End-to-end latency is measured per row as the difference between the WAL append time at the sink and the WAL append time at the source - see source.

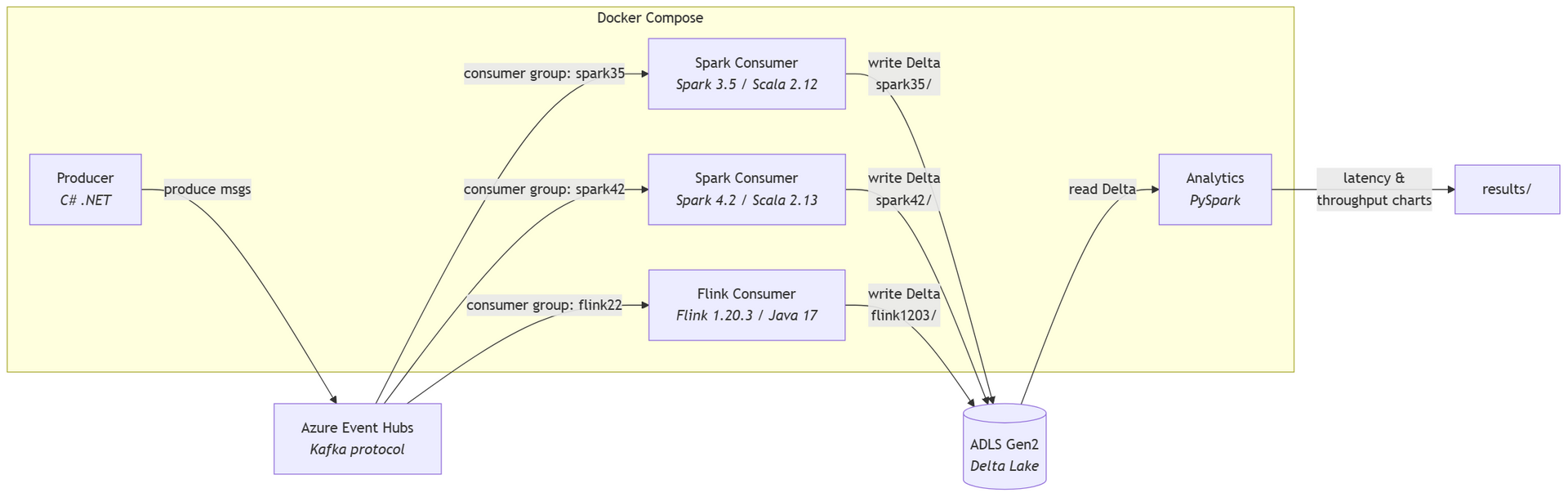

With some mileage under my belt these days on high-throughput 27 GB/min Kafka to Delta Lake streaming running in Production, I wanted to throw together a well-tuned and rapidly reproducible benchmark to see how hard I could push these JVM-based engines:

For producers - we have a C# app here that aggressively sends JSON messages across all threads:

producer-csharp-1  | Starting producer with 4 cores targeting 'benchmark'
producer-csharp-1  | [Stats] Total sent: 1,482,127 | Last 10s: 147,118 msg/s | Overall: 147,118 msg/s
producer-csharp-1  | [Stats] Total sent: 3,303,331 | Last 10s: 181,871 msg/s | Overall: 164,442 msg/s
producer-csharp-1  | [Stats] Total sent: 5,109,863 | Last 10s: 180,304 msg/s | Overall: 169,720 msg/s
producer-csharp-1  | [Stats] Total sent: 7,002,626 | Last 10s: 189,034 msg/s | Overall: 174,541 msg/s
producer-csharp-1  | [Stats] Total sent: 8,854,538 | Last 10s: 184,889 msg/s | Overall: 176,608 msg/s
producer-csharp-1  | [Stats] Total sent: 10,733,684 | Last 10s: 185,496 msg/s | Overall: 178,102 msg/s
producer-csharp-1  | [Stats] Total sent: 12,531,128 | Last 10s: 179,279 msg/s | Overall: 178,270 msg/s
producer-csharp-1  | [Stats] Total sent: 14,301,338 | Last 10s: 177,057 msg/s | Overall: 178,119 msg/s
producer-csharp-1  | [Stats] Total sent: 16,112,399 | Last 10s: 181,034 msg/s | Overall: 178,442 msg/s
producer-csharp-1  | [Stats] Total sent: 17,991,545 | Last 10s: 186,934 msg/s | Overall: 179,292 msg/s
producer-csharp-1  | [Stats] Total sent: 19,611,968 | Last 10s: 161,880 msg/s | Overall: 177,713 msg/s
producer-csharp-1  | [Stats] Total sent: 21,164,306 | Last 10s: 155,233 msg/s | Overall: 175,845 msg/s

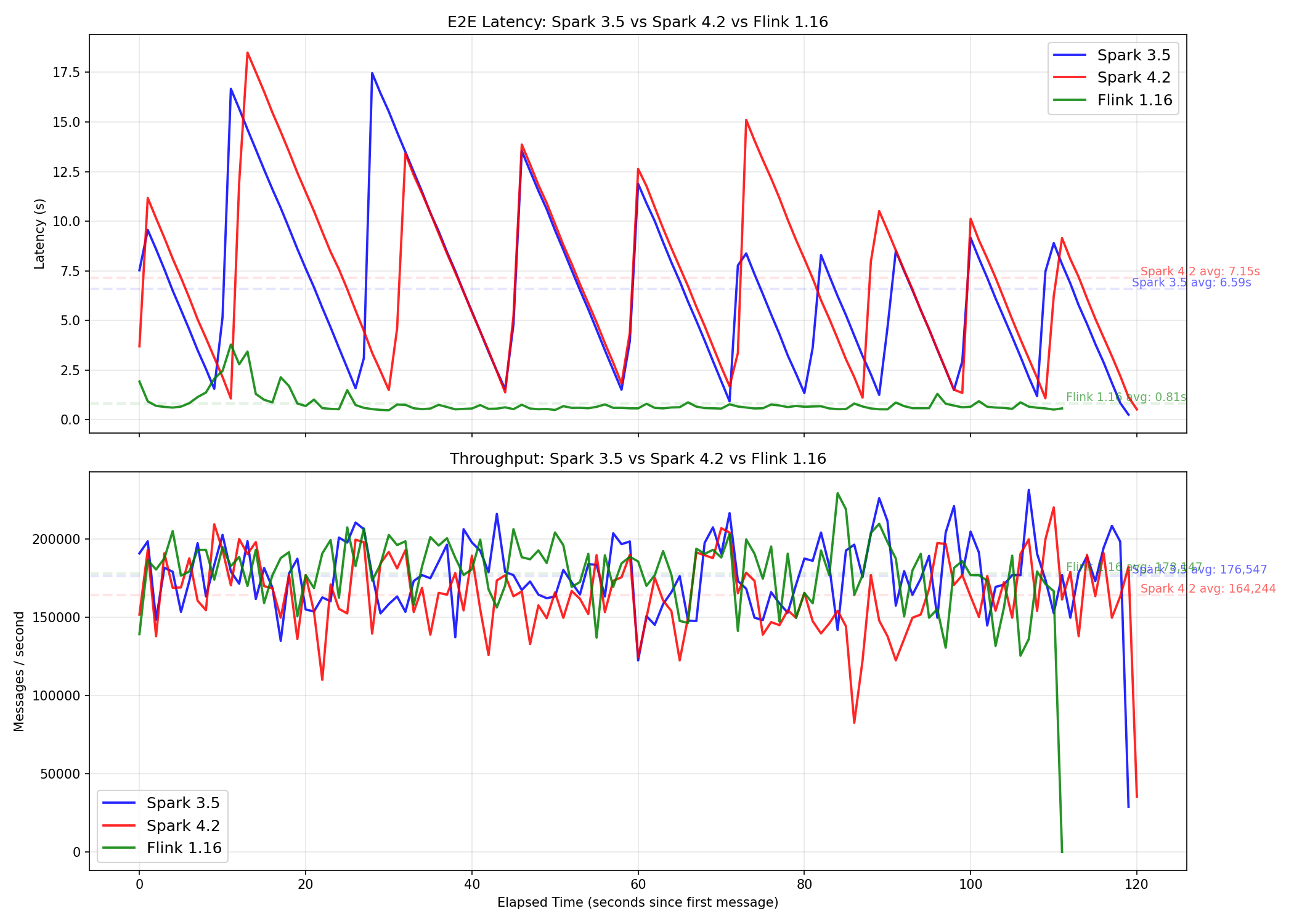

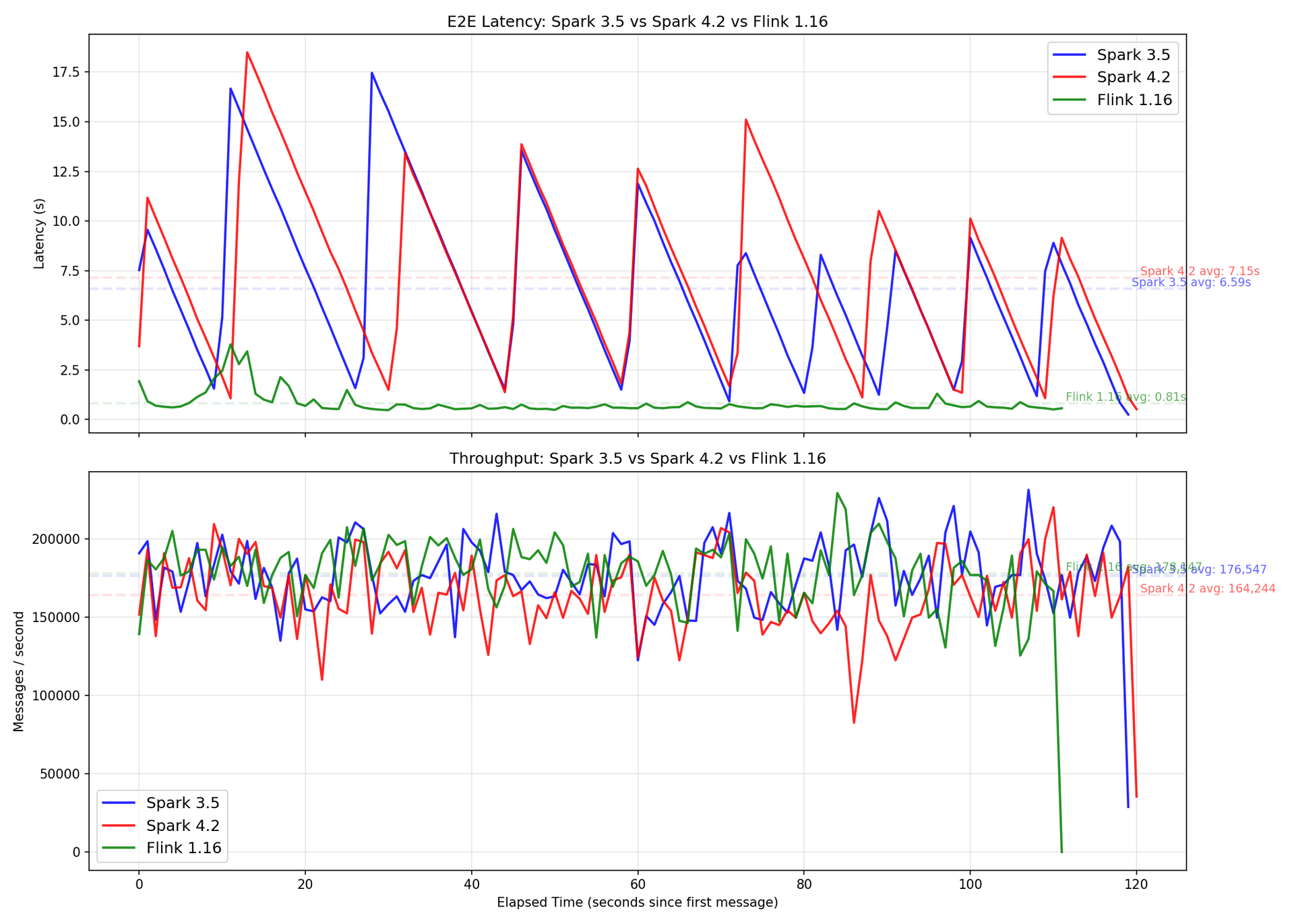

For consumers, since Spark flushes to Delta Lake after each Microbatch, the best case latency you get is about 2 seconds (end of Microbatch), with worst case getting around 15 seconds (start of Microbatch) - in a saw-toothed pattern. Flink is significantly more stable at ~1 second latency:

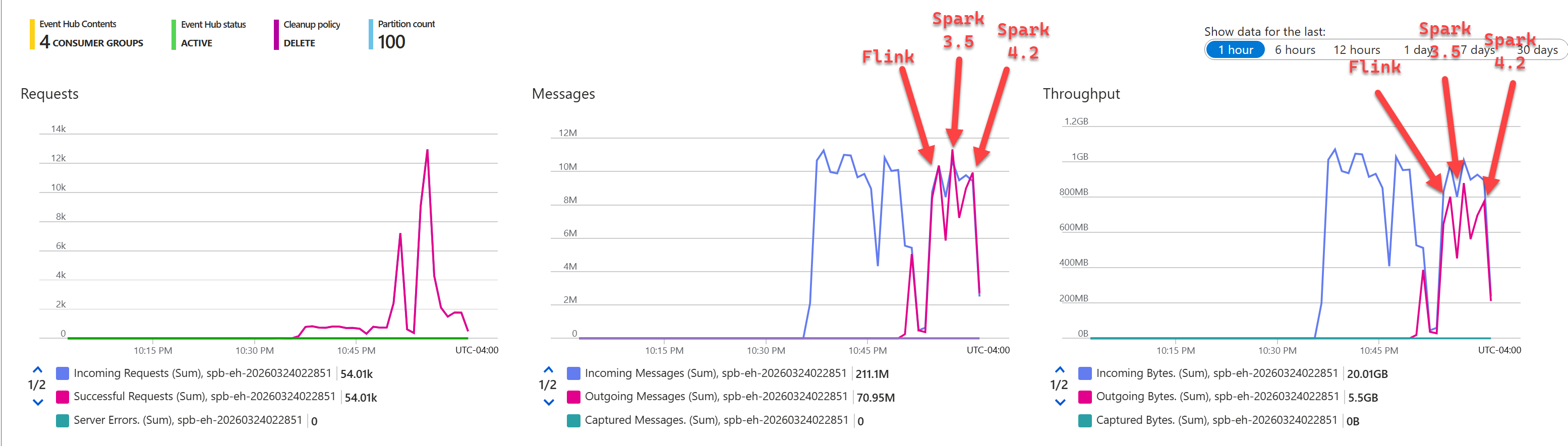

And here's Event Hub's point of View:

Latecy average:

• Spark 4.2: 7.15 seconds
• Spark 3.5: 6.59 seconds
• Flink 1.16: 0.81 seconds

With all 3 engines not breaking a sweat with the consumer throughput of roughly 180K messages/s - I'm pretty sure we can push a lot higher.

The benchmark is fully automated and takes 3 minutes to setup from scratch. All you need is Docker Desktop for the Stream Porcessing engines and an Azure Subscription for Event Hub and Storage Account - see here.

Feel free to try it and raise any issues/PRs if you happen to know something about Spark Microbatch Streaming on how to make it rip into Delta Lake any faster with the same throughput.

I look forward to repeating this as soon as RTM is available for Delta Lake in Spark 4.2+!
